Dock Tuner

dock_tuner is a helpful macro that provides an interactive interface for calibrating dock positions. It allows you to step through the docking/undocking sequence and adjust X, Y, and Z positions in real-time, then outputs the final values for your configuration files.

The macro was created by Contomo (SC.0164) for the StealthChanger community.

Dock Tuner Interface

dock_tuner interactive interface

Installation

  1. Download the latest dock_tuner.cfg macro file:
  2. Download from the klipper-toolchanger-hard repository
  3. Click the "Raw" button on GitHub to download the file directly
  4. Copy the file to your Klipper config directory:
  5. Copy dock_tuner.cfg to ~/printer_data/config/stealthchanger/dock_tuner.cfg
  6. The stealthchanger directory should already exist if you've installed klipper-toolchanger-easy
  7. Add this line to your printer.cfg: ini [include stealthchanger/dock_tuner.cfg]
  8. Run FIRMWARE_RESTART to load the macro

Prerequisites

Before using dock_tuner, ensure you have:

  • Set params_close_y and params_safe_y in toolchanger-config.cfg (see Dock Calibration)
  • Roughly set your params_park_x, params_park_y, and params_park_z values in your tool config files (you can use the manual calibration method to get initial values)

Workflow for Calibrating All Tools

1. Prepare the Printer

  • Home all axes with T0: G28
  • Run quad gantry leveling: QUAD_GANTRY_LEVEL
  • Re-home: G28

2. Calibrate T0

  • Ensure T0 is on the shuttle and run INITIALIZE_TOOLCHANGER
  • Run dock_tuner in the console
  • The macro will provide an interactive interface to step through the docking sequence
  • Follow the on-screen prompts to:
  • Step through each movement in the docking/undocking path
  • Adjust X, Y, and Z positions as needed (the macro will provide adjustment commands)
  • Test the docking and undocking sequence

Dock Tuner Adjustment

Adjusting dock positions in dock_tuner

  • Continue adjusting until the tool docks and undocks smoothly and reliably
  • When satisfied, the macro will output the final params_park_x, params_park_y, and params_park_z values in the console

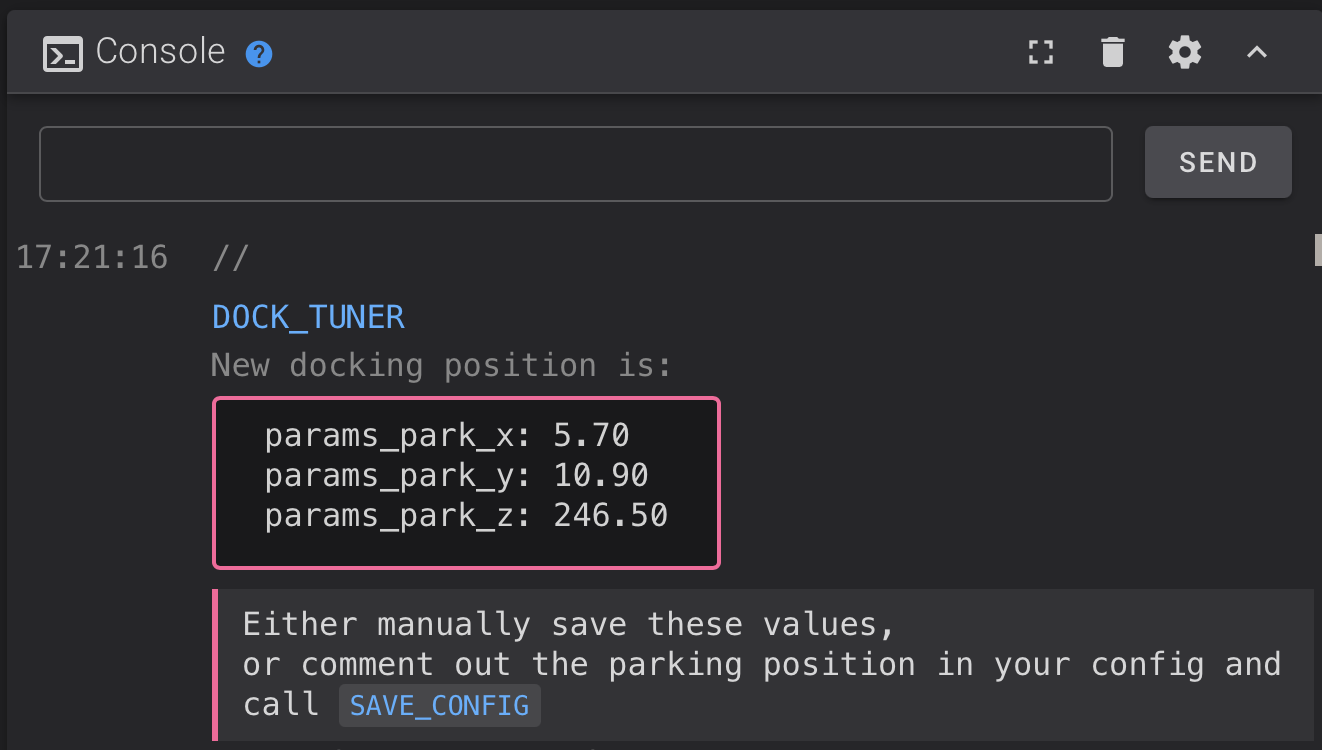

Dock Tuner Final Values

Final dock position values output by dock_tuner

  • Copy these values to stealthchanger/tools/T0.cfg in the [tool T0] section: ini [tool T0] params_park_x: <value_from_dock_tuner> params_park_y: <value_from_dock_tuner> params_park_z: <value_from_dock_tuner>

3. Calibrate T1 (and Additional Tools)

Calibration Procedure

Avoid running INITIALIZE_TOOLCHANGER with T1 or other tools during calibration. While it's technically okay if your gcode_offsets are already perfectly calibrated, it applies offsets which can make the calibration process confusing. It's safer to work directly in T0's coordinate system. DO NOT run G28 with Tn - This establishes Tn's coordinate system and will break calibration.

  • Manually place T1 on the shuttle (or use T0 to pick it up from its dock)
  • Run dock_tuner again
  • The macro will detect the current tool and calibrate for that tool
  • Follow the same adjustment process as T0
  • When satisfied, copy the final values to stealthchanger/tools/T1.cfg in the [tool T1] section: ini [tool T1] params_park_x: <value_from_dock_tuner> params_park_y: <value_from_dock_tuner> params_park_z: <value_from_dock_tuner>

4. Repeat for All Remaining Tools

  • For each additional tool (T2, T3, etc.), follow the same process as T1
  • Remember: don't run INITIALIZE_TOOLCHANGER with non-T0 tools during calibration
  • Copy the values to the corresponding tool config file (stealthchanger/tools/Tn.cfg)

5. Finalize

  • Run FIRMWARE_RESTART to apply all changes
  • Test tool changes between all tools to verify everything works correctly

Tips

  • dock_tuner allows you to see exactly where the tool tries to dock and identify alignment issues
  • Watch for the OctoTap LED state change when the tool is detected during pickup
  • Make small adjustments (0.1-0.5mm increments) and test frequently
  • The Z position should be where 1mm more down would untrigger the tap module
  • If you're having issues, check that you haven't accidentally run INITIALIZE_TOOLCHANGER with a non-T0 tool

Next: Slicers & Macros → Configure your slicer and print_start macro for multi-tool printing

Related: Dock Calibration → Manual calibration method

FAQ

Quick Links:

dock_tuner doesn't detect my tool

Make sure:

  • The OctoTAP board is properly mounted and the optical sensor is aligned
  • The tool is properly seated on the shuttle
  • Your params_pickup_path includes a step with verify:1 parameter
  • The tool detection is working (you can test with DETECT_ACTIVE_TOOL_PROBE)

Can I use dock_tuner with non-T0 tools?

Yes, but you must manually place the tool on the shuttle first. DO NOT run G28 or INITIALIZE_TOOLCHANGER with non-T0 tools during calibration. Home with T0 first, then manually switch to the tool you want to calibrate.

dock_tuner moves too fast/slow

You can adjust the speed multiplier using the SPD parameter. For example, DOCK_TUNER SPD=0.5 will run at 50% speed, or DOCK_TUNER SPD=2.0 will run at 200% speed. Be careful with higher speeds to avoid collisions.

The dock positions from dock_tuner don't match my manual calibration

This is normal - dock_tuner provides an interactive way to fine-tune positions. The values should be close to your manual calibration, but may need slight adjustments. Use dock_tuner to refine the positions for optimal tool changes.
